Hey guys!

Now, I promised a tutorial for the hideously-difficult-to-do MkII "Crusade" pattern power armour. I'm not really good at doing tutorials, and this one I just quickly quickly cooked up. Hope it's any good:

Part A: What you need

A1: Helmet -

I used the helmets from Maxmini (for those of you who don't know them: Linky). They're great, good quality and not too expensive. In my opinion, the ones on the far right on the picture in the store (upper and lower right) resemble MkII helmets.

A2: Torso -

From the standard Space Marine Box, use the torso with the single little skull on it (no Aquilas/Imperialis, no cables), as well as a standard back part.

A3: Arms -

From the Chaos Space Marine Box, use any arm with a gauntlet. These resemlbe MkII army most. Use any shoulder pad that has no Chaos iconography and no studs.

A4: Legs -

Use the standard Space Marine legs with kneepads.

A5: Power pack -

I used the power packs form the Chaos Space Marine box, but trimmed the "wings" back so it looks like a loyalist pack.

A6: Bolter -

I used the standard Goodwyn pattern Bolter, but using one from 2nd Edition could look good too.

A7: Sculpting tools and Green Stuff -

My sculpting tools were a Swiss Army knife, the needle of a compass (for drawing circles), and a nail clipper. I recommend proper sculpting tools though.

A8: Time and, above all, Patience, coupled with a steady hand

Part B: How to do it

Now, the head, the arms, the bolter and the power pack don't need much work, so I won't discuss them. The hard parts are the legs and the front torso. In the following steps I'll only describe how to do the torso, since the principle is the same for both.

Step 1:

Remove the little skull with a knife (on the photos, it'll still be there, just imagine it's cut off):

Step 2:

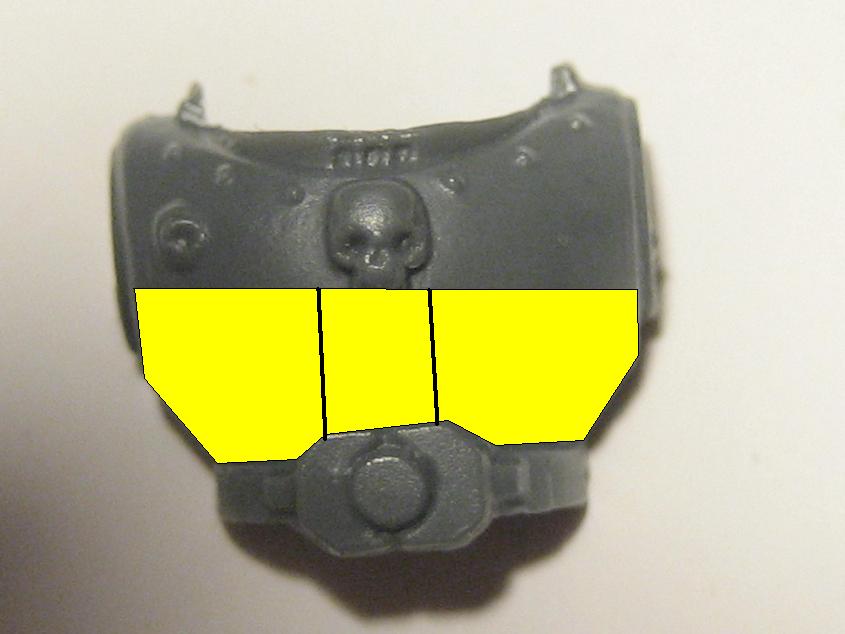

Using the knife, cut a straight line/indentation about 0,5 mm deep into the torso along the line shown on the pic.

Step 3:

Using the knife or a file/grinder, or possibly sandpaper, cut out/remove all details and features between the cut and the torso belt (Red/Green area). You don't need to cut away much, just enough to fit in a 1mm-thick layer of Green Stuff later.

Step 4:

Fill the area with Green Stuff, smoothing the surface by rubbing with your finger, applying pressure with a flat object (like the flat side of a knife), or (only after the last step, when it's dry!!!) by using sandpaper. While the GS is still soft, use the knife or a similar object to carefully make to long indentations down the center as shown on the pic.

Step 5:

With the GS still soft, apply the details. The MkII armour appears to have some sort of cabling down the center, so create this by adding a set of paralell horizontal indentations between the two vertical ones.

Step 6:

Last step. With the GS still soft, add the last 4 indentations, thereby creating the armour segments.

The result SHOULD look something like this:

Now, the legs use the same principle.

- Using a knife, cut away a ~0,5-1mm-thick layer of the shin and thigh armour.

- Replace it with a layer of Green Stuff. While it's still soft, make the same sort of indentations/lines as described in the torso tutorial above. There should be 2 such lines on the shins and 2 on the thighs, thereby creating the different armour segments.

- The MkII armour has, strictly speaking, two more details many people tend to forget: a cod piece (I call it "dick armour"), and cabling along the thighs. I made the former by cutting out an oblong piece of thin cardboard (such as from a cereal box), put a layer of green Stuff over it, then made 2 indentations/lines as described above. The cabling I made by adding thin strips of Green Stuff to the thighs, then used the same technique as described in Step 5 above.

The result should look something like this:

As a last finishing touch, you can add a spike to the helmet (I think that looks cool). I used an arrowhead from the Warhammer Fantasy Goblins and stuck it into a drilled hole in the helmet. Also, you can add a few studs/rivets to the corners of the armour segments and/or in a line along the side of the leg, one per segment. I didn't do this, though I guess it would look great if the studs/rivets are done nicely.

As an alternative to the above, simply buy the MkII in the "armour through the ages" set. I used some bits and pieces from that set.

Finished MkIIs:

There, that's a tutorial of sorts, I hope. If anyone uses it to create his own MkII armour then I'd love to see some pics :huh: Hope that it was easy to understand and that it helps you with your MkII modelling! If anyone has questions or (constructive) criticism, just let me know ;)
